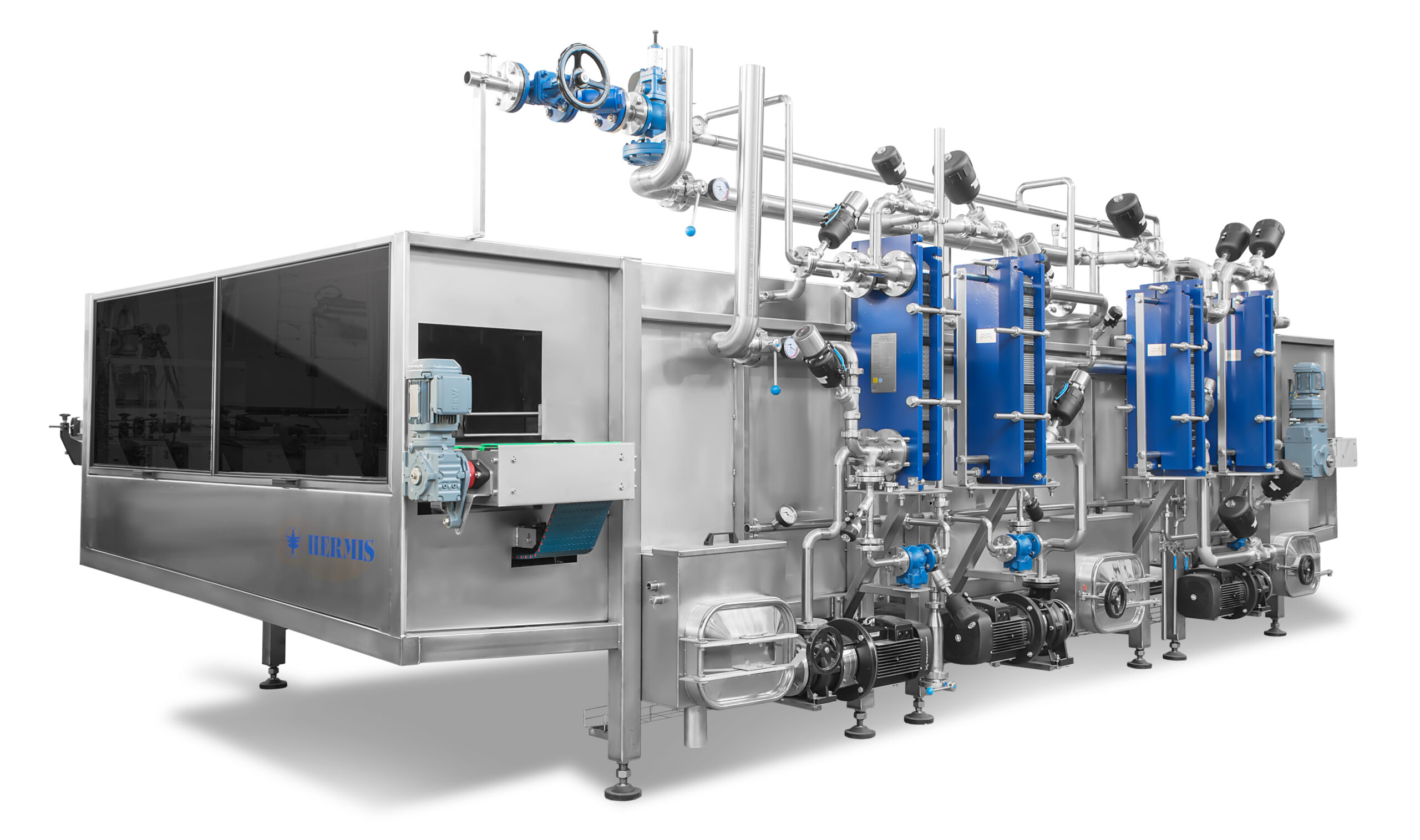

Tunnel Warmer

Hermis tunnel warmers are designed for heating sealed beverages to the ambient temperature (from about 20 °C to more than 25 °C) of the room prior to labeling.  Essentially, tunnel warmers prevent condensation that is likely to make labeling more difficult. The warming process also preserves the quality of products. Additionally, using a tunnel warmer also ensures that bottles will not break due to thermal shock.

Hermis Tunnel Heater | SMB Machinery
Technical DetailsControllersComponentsRequest More Information

Characteristics

Performance:From 2,000 to 24,000 bottles/hour
Product:Champagne and other beverages dispensed at low temperatures
Heat source:Steam, electricity, hot water
Heating method:The bottle passing through the tunnel is gradually heated in a heating zone
at different temperatures. Heat is produced by spraying water through nozzles,
onto the container

The bottle passing through the tunnel is gradually heated in a heating zone at different temperatures. Heat is produced by spraying water through nozzles, onto the container

Controllers


Automatic Control

  • Siemens S7 processor-based control system
  • Automatic temperature control
  • Automatic shutdown in emergency situations
  • Color touch screen control panel
  • Ability to memorize and configure previously set parameters
  • Ability of data communication and remote access via modem

Monitoring of valve positions, and temperature recorders are optional extras.


Semiautomatic



  • Siemens Logo PLC based control system
  • Automatic temperature maintenance
  • Changing the speed using a frequency converter
  • Manual switching valves

Temperature recorders are an optional extra


Components

Hermis JSC uses only high quality materials and components for production of its tunnel warmers. These are all manufactured in the European Union and they meet all the quality requirements:

  • Stainless steel produced in Sweden, Germany, Italy
  • Electric actuators – Lenze (Germany), or SEW (Germany) on request
  • Pumps – Lowara (Italy), Packo (Belgium), or Grundfos (Germany)
  • Heat exchangers – FUNKE (Germany), or Schmidt (Germany) on request
  • Control and shut-off valves – Bürkert (Germany), or Samson (Germany) on request
  • Condensate catchers – MIYAWAKI (Japan), or Spirax Sarco (England) on request
  • Shut-off valves – SODIME (France), or KIESELMANN (Germany) on request
  • Modular belts and conveyor parts – MOVEX (Italy), or Rexnord (Netherlands) on request
  • Nozzles – Lechler (Germany)
  • Pneumatic elements – Festo, Norgren (Germany)
  • Temperature sensors, level sensors – ANDERSON-NEGELE (Germany), or Endress + Hauser (Germany) on request
  • Parameter registration – Endress + Hauser (Germany)
