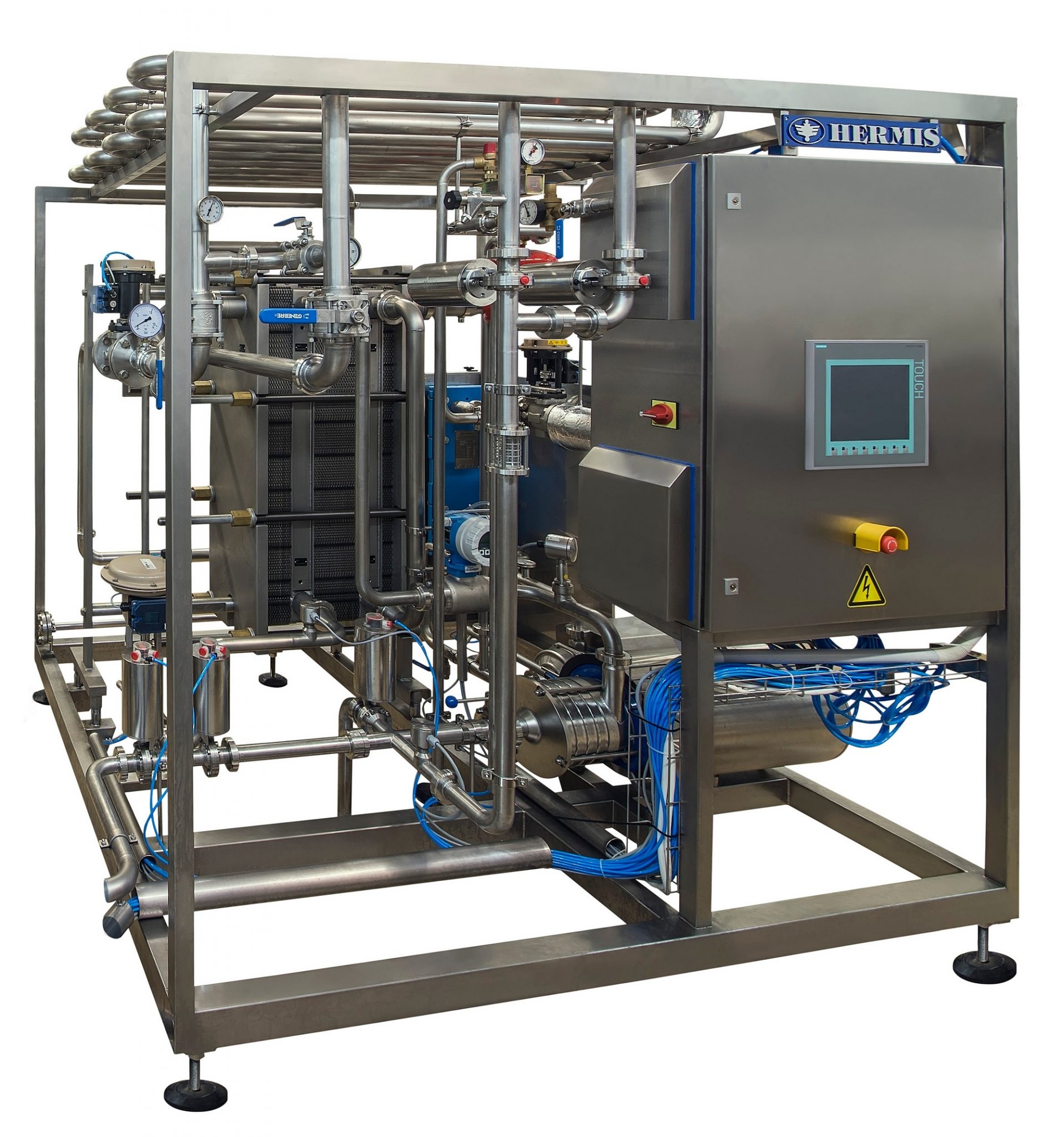

Flow Pasteurizer

The Hermis flow pasteurizer was designed for constant thermal processing of beverages including juice, wine, beer, kvass, and other drinks. The machine starts by rapidly heating the liquid to a predetermined temperature. The liquid is then held for a while, and then it is cooled. This thermal process reduces the number of microorganisms in the product and as a result increases its shelf life.

Hermis Flow Pasteurizer | SMB Machinery
Hermis Flow Pasteurizer | SMB Machinery
Hermis Flow Pasteurizer | SMB Machinery
Technical DetailsControllersComponentsRequest More Information

CHARACTERISTICS

Output:From 1,000 to 30,000 liters/hour
Products:Beer, brew, wine, juices, milk, sugar syrup, carbonated liquids, and drinks
that contain juice
Temperature modes:Dependent on the product
Heat source:Steam, electricity, hot water
Cooling source:Water, propylene glycol, alcohol solution, saline solution

MAIN MODES OF PASTEURIZER OPERATION

  • Heating and sterilization of water
  • Activation of the pasteurization mode and on the machine leading to transition of process to the product
  • Pasteurization of product
  • End of pasteurization
  • Cleaning of pasteurizer machine

OPTIONAL EXTRAS

Pasteurizers can be equipped with a:

  • buffer tank
  • pump for cleaning solutions returned from the buffer tank
  • pump for the coolant line

Controllers


Automatic Controllers

Control system is based on a Siemens S7 processor:

  • Automatic temperature control
  • Automatic control system for output, pressure and pasteurization units
  • Temperature recorder
  • Automatic shutdown in emergency situations
  • Color touch panel
  • Ability to store and configure the previously defined parameters
  • Ability to transmit data and remote access via modem
  • Control of valves positions may be added as an optional extra



Semi-Automatic Controllers

Control system based on a PLC Siemens Logo controller:

  • Automatic maintenance of pasteurization temperature
  • Manual valve switching
  • Flow meter and frequency converter of product pump to control the output
  • Pressure relay
  • Pressure increase protection system
  • The optional addition is possible:Output monitoring and maintaining:
  • A flow meter and temperature recorder is available as an optional extra for output monitoring and maintenance.


Components

Hermis JSC uses only high quality materials and components for production of pasteurizers. These are all manufactured in the European Union and they meet all the quality requirements:

  • Three-section plate heat exchanger – Schmidt (Germany), Alfa Laval (Germany)
  • Tubular holder – Stainless steel (AISI 316)
  • Multistage high-pressure pump – Packo (Belgium), Hilge (Germany)
  • Plate heat exchanger – FUNKE (Germany)
  • Hot water circulation pump – Lowara (Italy)
  • Valves for steam – Bürkert (Germany), Samson (Germany)
  • Steam trap – MIYAWAKI (Japan), Spirax Sarco (Great Britain)
  • Control instrumentation – Endress+Hauser, ANDERSON NEGELE (Germany)
  • Control cabinet with automatic adjustment and control system for the pasteurization process – Siemens (Germany)
  • Color panel touch screen – Siemens (Germany)
  • Frames – Stainless steel (AISI 304)
  • Pipeline accessories – Stainless steel (AISI 316)
  • Pneumatic valves – SODIME (France), Kisselmann (Germany)
  • Control valve for refrigerant – Bürkert (Germany), Samson (Germany)
  • Pneumatics elements – Festo (Germany), Norgren (Germany)
